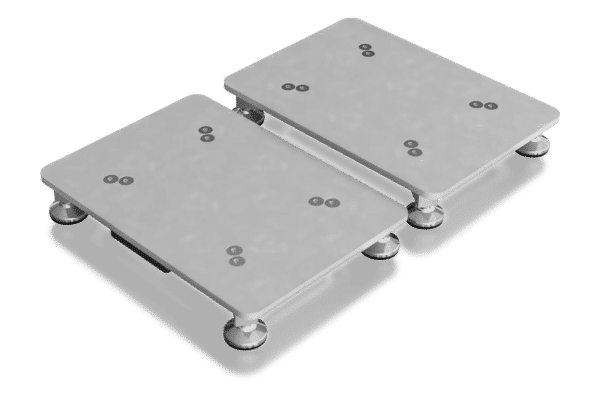

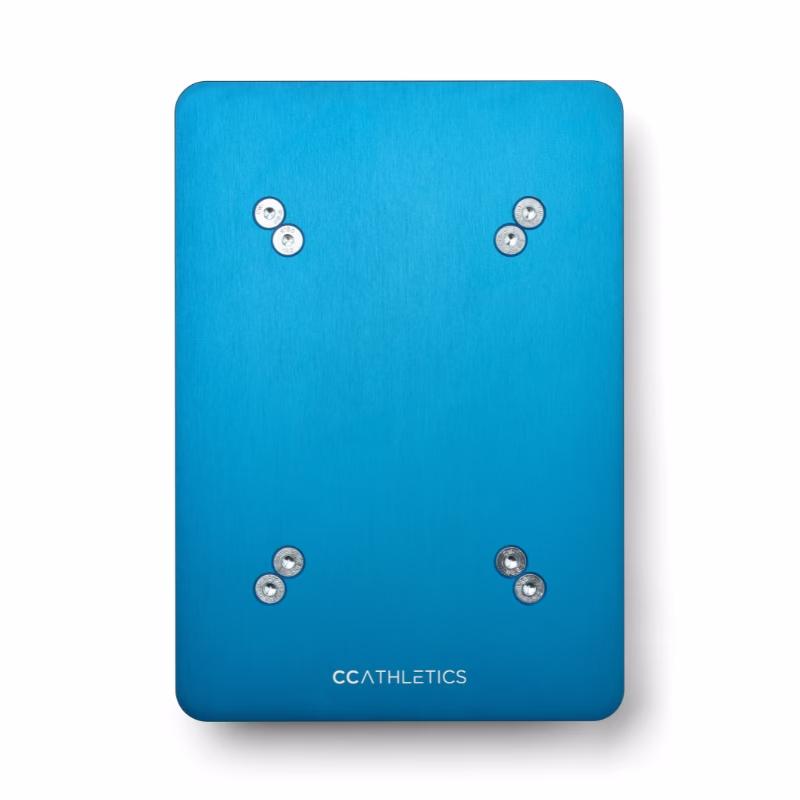

PlateMate
High quality, accurate and user-friendly dual force plates that provides what you need.
€3,920 ex VAT
(Physiotherapists must pay VAT (moms) in Denmark)
Description
PlateMate is currently the world’s most affordable force plates that offer advanced jump analysis & isometric strength.
Force plates measure the amount and direction of force that you apply to the ground during any movement. By using force plates, you can get instant feedback on your power, speed, balance, and technique. You can also monitor your progress and adjust your training accordingly. Force plates help you train smarter and faster, and avoid injuries and overtraining.
Force plates provide you with objective data that can help you improve your performance. You can use force plates to analyze your strengths and weaknesses, compare yourself with others, and identify areas for improvement. Force plates help you make informed decisions and achieve your goals.
Metrics calculated by force plates
(Comes with our Flight Case, for a handy way to carry around our force plates)
Plug & Play
PlateMate is powered entirely by USB. So start measuring in under 10 seconds.
One-time purchase
We believe that if you buy some hardware, it should work forever. That’s why we don’t have any recurring costs.
Data integrety
Even if you use our Cloud, all stored data will still belong to you, and you can always extract it (including raw data).
Warranty
Because we believe in our products, we always offer a 1 year warranty. See Trade Conditions

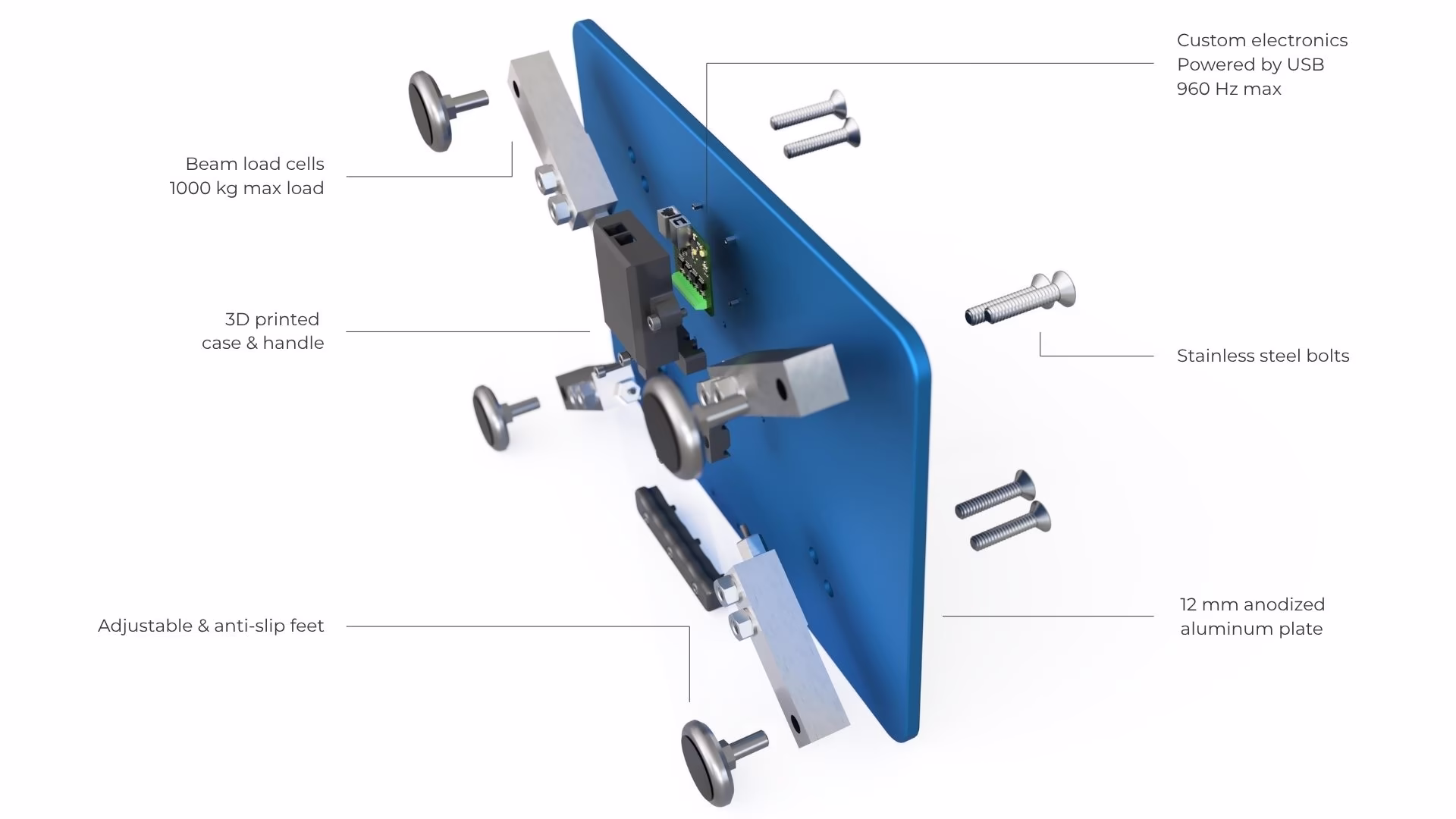

Technical Features
Sample rate:
960 Hz sample rate
Max load:
1000 kg per plate (peak force)
Requirements
PC with Windows or MacOS
Weight & dimensions:
9.4 kg per plate – 50 x 35 x 8 cm
Precision:
0.15 Newton
Outputs measured

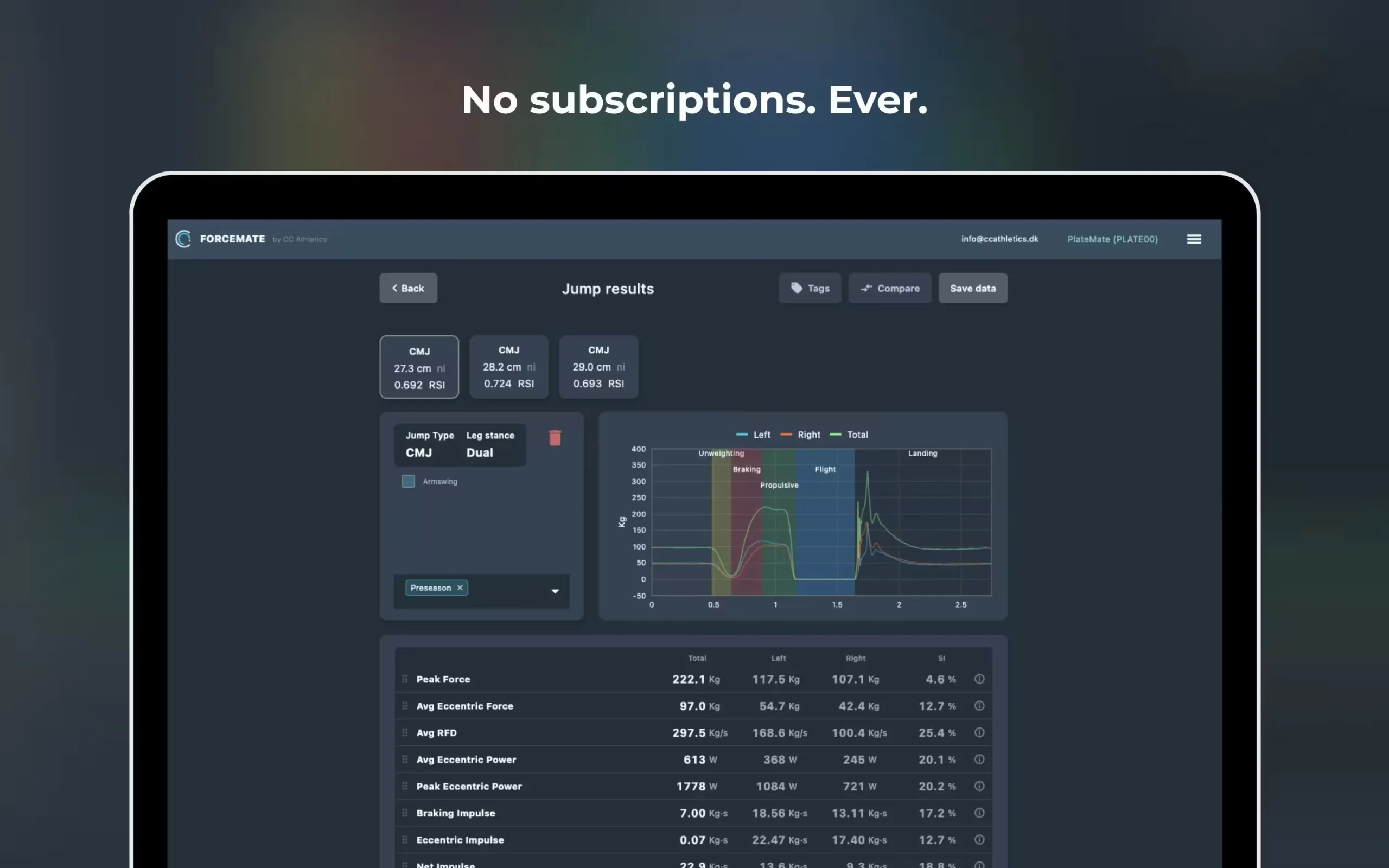

Jump types detected:
Counter Movement Jump
Squat Jump

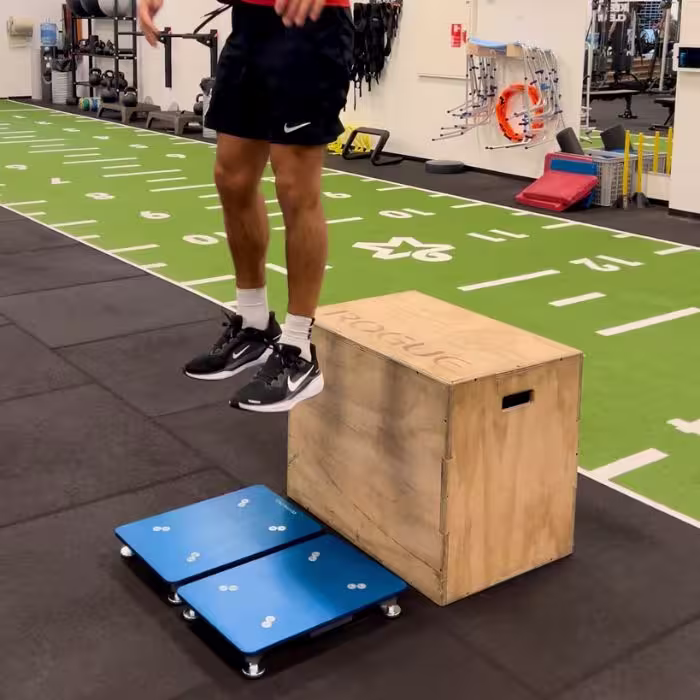

Drop Jump
Pogo Jump Test
57 Metrics calculated
Jump Height, Flight Time, RFD, RSI…
See the whole list here
Open protocol
Our force plates uses an open & human-readable USB serial protocol. View the data directly in e.g. Arduino Serial monitor.
It allows customers to create their own software for data extraction, if they so please.
Included:

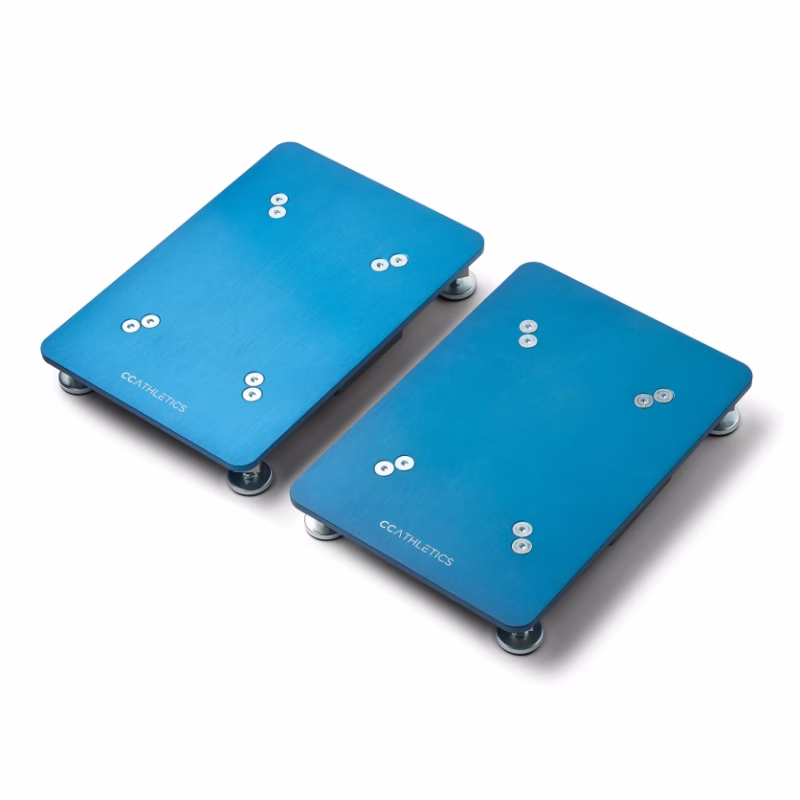

Dual force plates
All required cables (1x USB-A cable, 1x connector cable)
Transport case with wheels
Measuring software

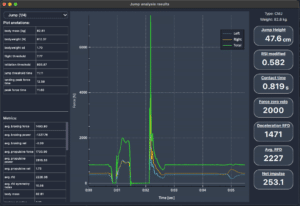

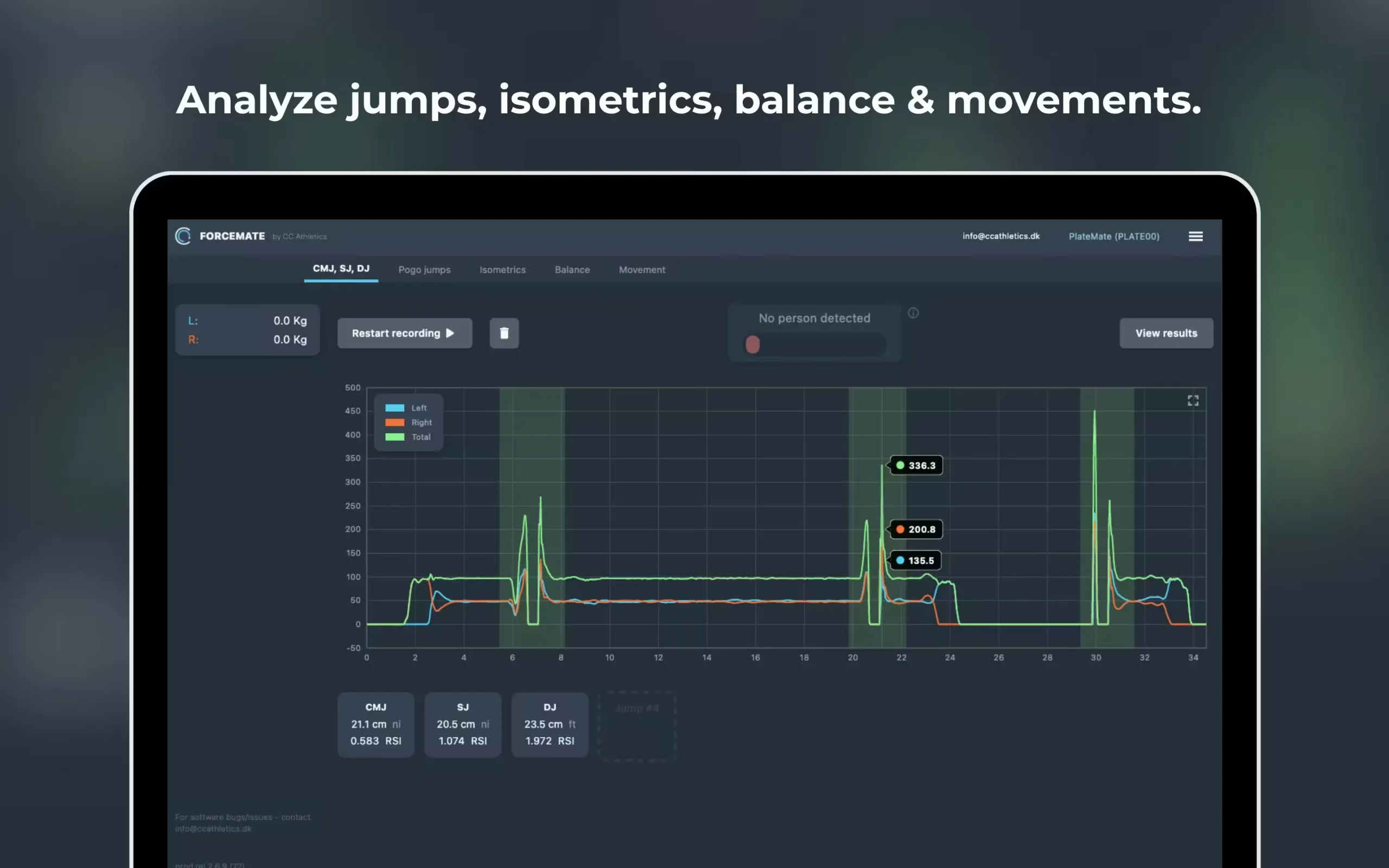

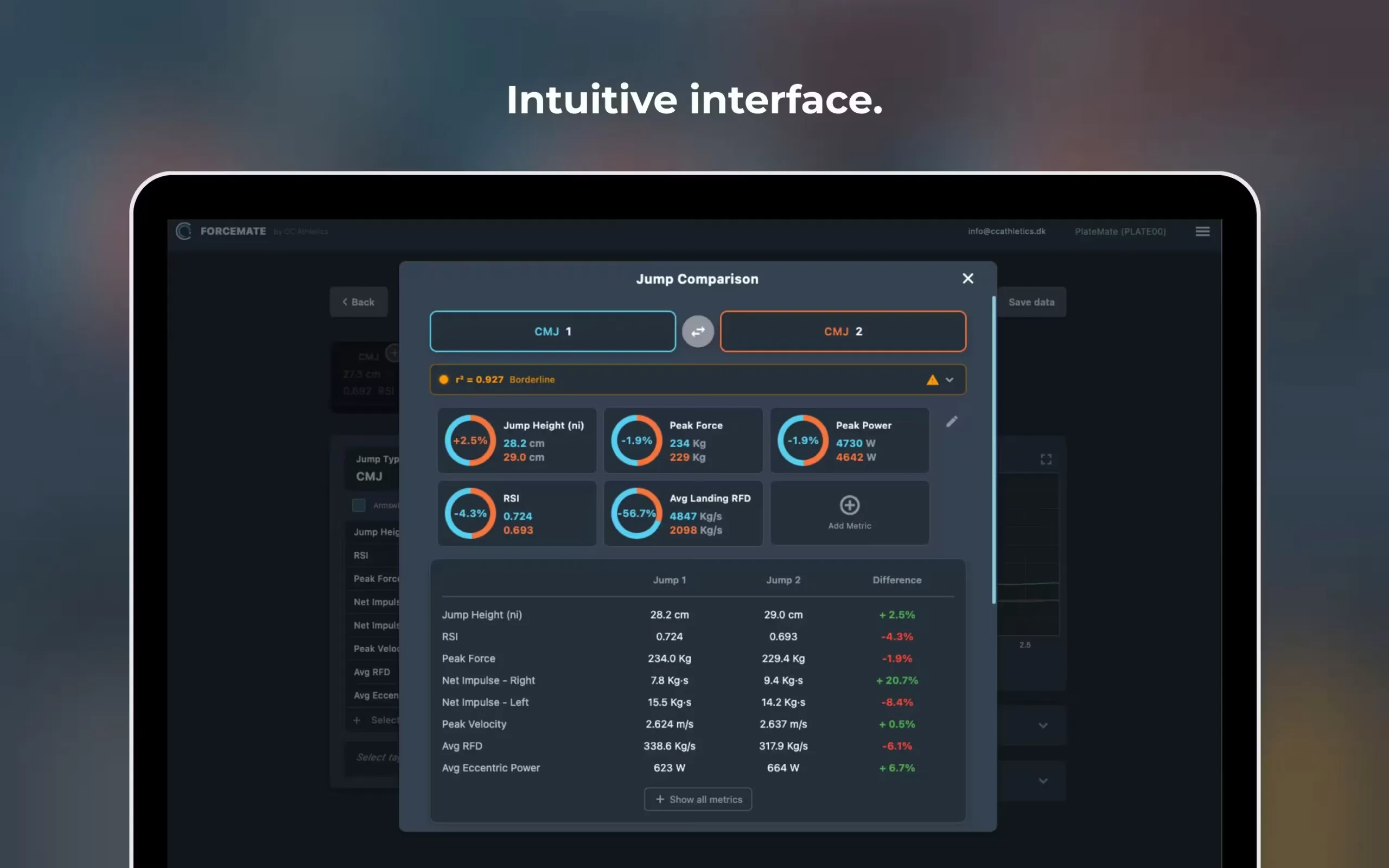

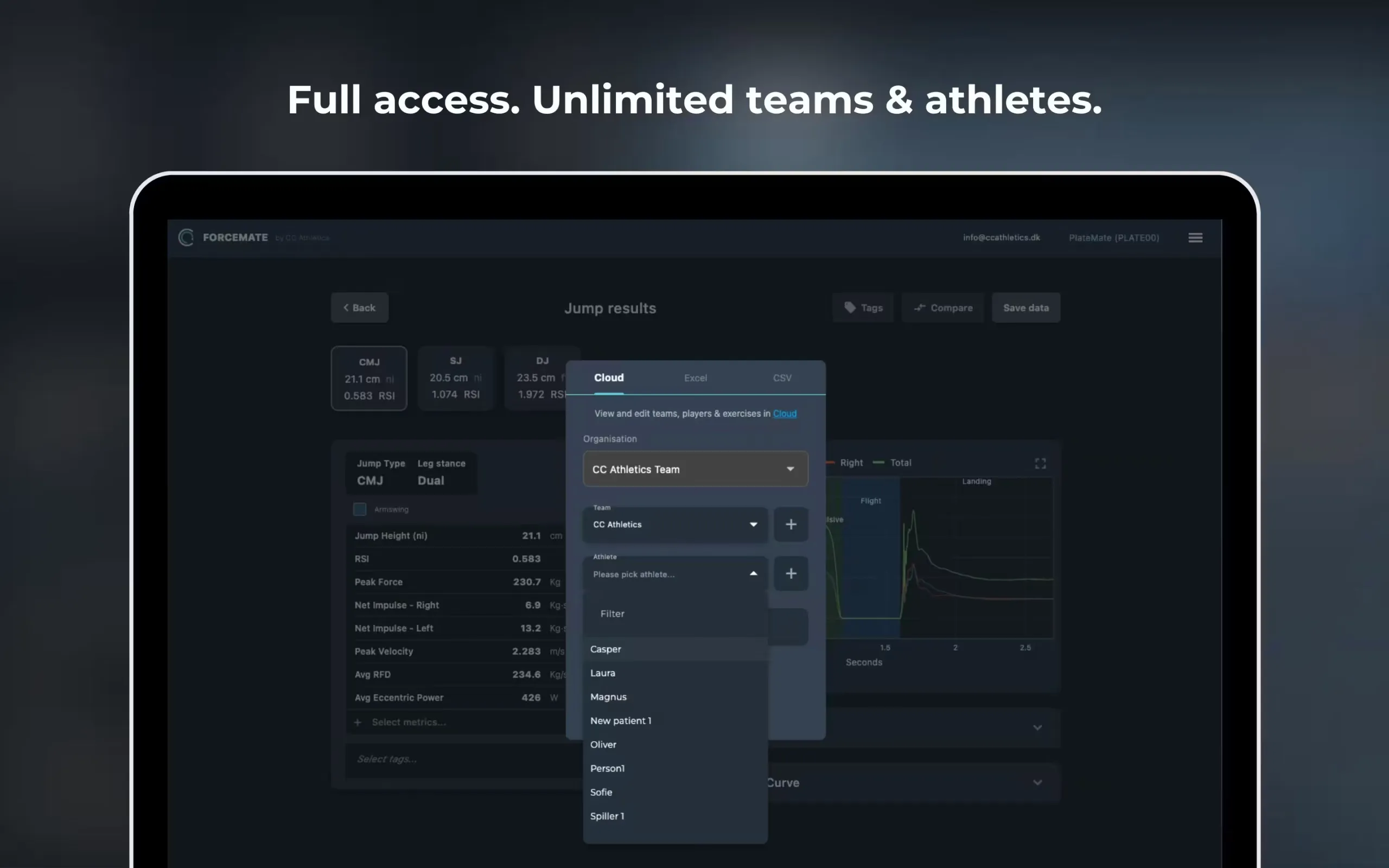

Try our software in your Browser!
Our software is very versatile and works on all kinds of platforms, including PC, MacOS and in the future iOS and Android!
(iOS and Android coming soon).
Now you can test the software exactly how it is, before you purchase and even without a physical device.
Use our simulated devices and pre-recorded datasets to view more.
Get a feel of how our software works
Validity
PlateMate has been validity tested against the popular MyJump app and showed excellent correlation.
The results speak for themselves!
Check out the full article in our blog post for more information

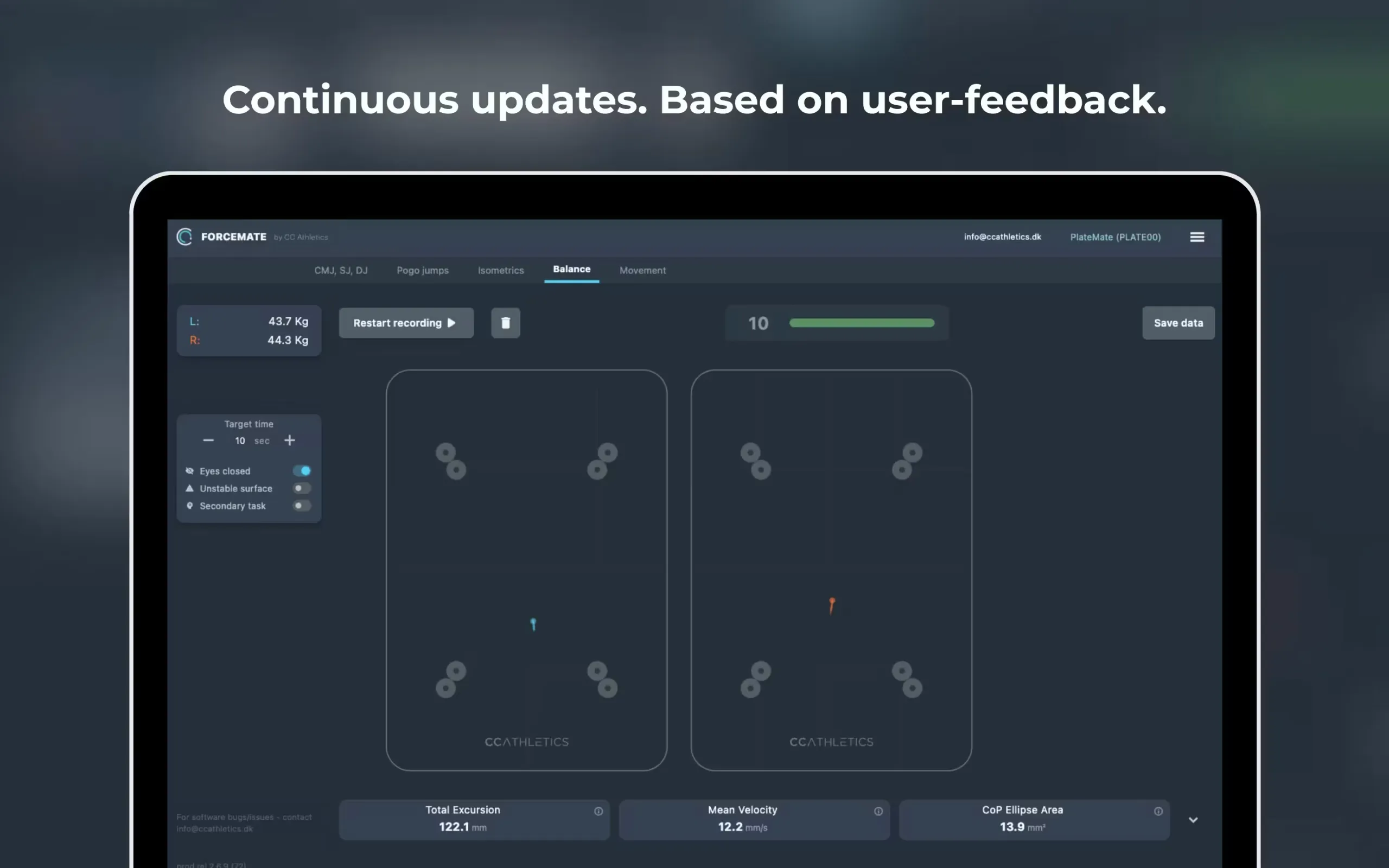

New software features
Our software keeps evolving and we are proud of that!
Check out the full article in our blog post for more details
