DacMate **COMING SOON**
The analog and digital interface connecting PlateMate force plates to third-party data acquisition systems.
Contact us for more information
30 days satisfaction guarantee
📄 Need a quote? Click here for instructions
Questions?
Feel free to send an email with your questions or get a live online demonstration of our products & software
Description

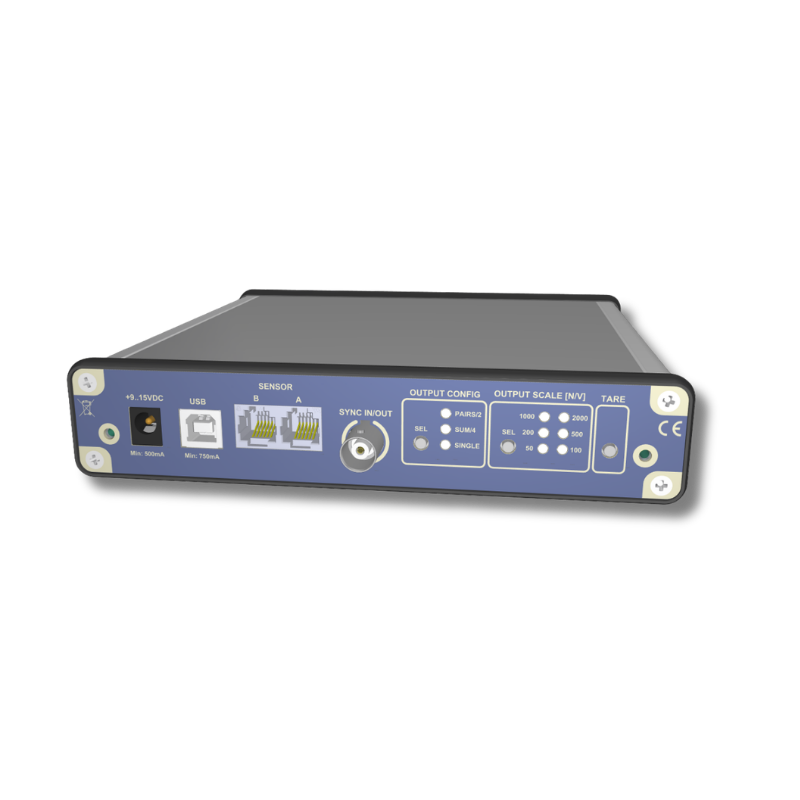

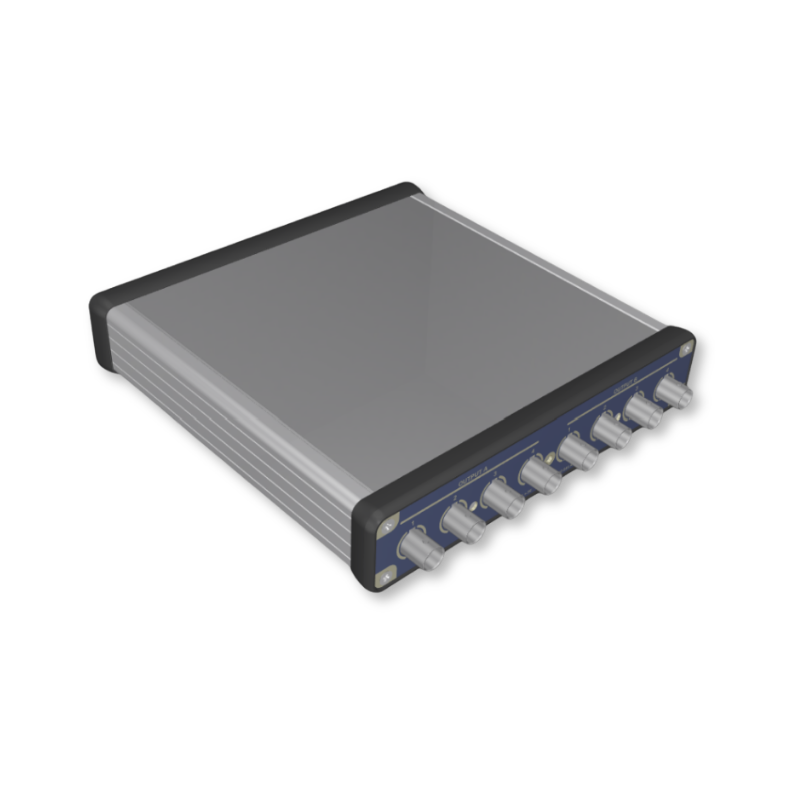

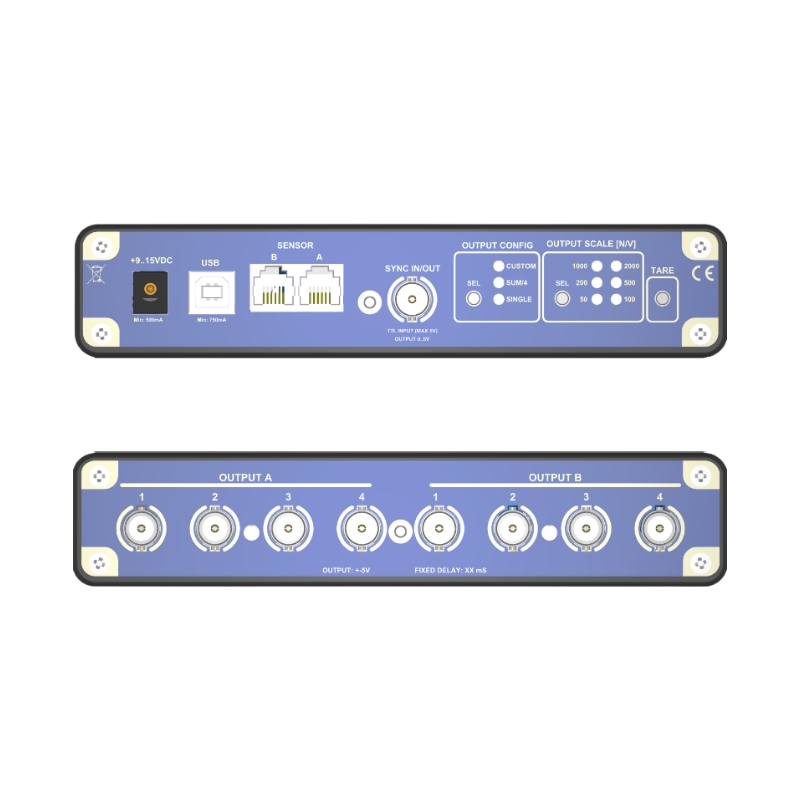

DacMate delivers eight 16-bit, low-noise, low-drift analog output channels, enabling seamless integration of up to two PlateMate force plates with any third-party data acquisition system.
Simple analog plug-and-play setup:
-
- Power DacMate via the USB 2.0 connector.
- Connect your PlateMate force plates using the supplied cables.
- Connect the desired analog outputs to your DAQ system using BNC coaxial cables.
- Select the preferred analog scaling and output configuration using the push buttons on the DacMate enclosure or configure it via USB 2.0 using the CC Athletics DacMate tool.
Live, scaled, and calibrated analog signals are now feed to the selected outputs.
